802.11 Security: Attacks and risks

Chapter 2: Attacks and Risks

802.11 networks have unique vulnerabilities that make them an ideal avenue of attack. Wireless networks cannot be physically secured the same way a wired network can be. An attack against a wireless network can take place anywhere: from the next office, the parking lot of your building, across the street in the park, or a bluff many miles away.

Understanding the details of various attacks against your wireless infrastructure is critical to determining how to defend yourself. Some attacks are easy to implement but aren't particularly dangerous. Other attacks are much more difficult to mount but can be devastating. Like any other aspect of security, wireless security is a game of risk. By knowing the risks involved in your network and making informed decisions about security measures, you have a better chance at protecting yourself, your assets, and your users.

An Example Network

Throughout this book, we will work toward the creation of the example network illustrated in Figure 2-1. This network is split into three segments: the Internet, a wireless network containing access points and wireless clients, and a wired network containing workstations, servers, and other devices. A gateway mediates the traffic between these three segments. The focus of this book is the security of the gateway, access points, and wireless clients. We will also investigate the effects the security of these components has upon the rest of the network and the external security issues that originate from outside the wireless network.

All of these network components must work together, and implement complimentary security, to establish a secure network. With that in mind, we will begin by examining the classes of threats to the wireless network.

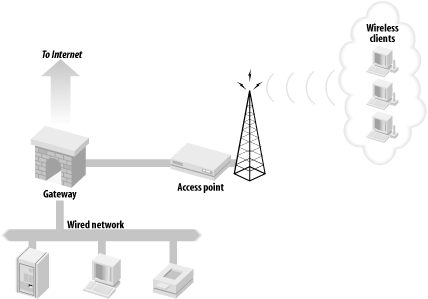

Figure 2-1. Architecture of example network

Denial-of-Service Attacks

Denial-of-Service (DoS) attacks, which aim to prevent access to network resources, can be devastating and difficult to protect against. Typical DoS attacks involve flooding the network with traffic choking the transmission lines and preventing other legitimate users from accessing services on the network.

DoS attacks can target many different layers of the network. In order to understand the risk of a DoS attack to a wireless network, you must first understand the difference between various types of DoS attacks.

A typical network-based DoS attack is a ping flood. An attacker generates massive amounts of ICMP traffic destined for the victim network. (ICMP packets are used for management functions such as querying the availability and services of a host.) This usually saturates the victim's WAN links. By cutting off the victim's LAN from the rest of the Internet, the attacker has denied access to any services that reside on the victim's LAN.

Data-Link (OSI Layer 2)

A data-link DoS can target either a host or a network. Data-link attacks are launched to disable the ability of hosts to access the local network even though the hosts are still connected. An example of this would be flooding a non-switched Ethernet network with invalid frames. An attacker (or sometimes a malfunctioning NIC) can send repeated frame headers with no payload. These headers are rebroadcast to all hosts on the network and effectively tie up the medium. Data-link DoS attacks are not common on wired networks because most networking gear has the intelligence to prevent data-link attacks from propagating to hosts on the network.

Physical (OSI Layer 1)

A physical-layer DoS involves severing a host's connection to the network in some fashion. Physical attacks are not common in wired networks because they involve having direct access to the transmission medium involved in the victim's network. For instance, WAN circuits are typically buried underground and are difficult to access. LANs reside inside of buildings, making them difficult targets as well. An example of an unintentional physical DoS attack is the dreaded backhoe DoS. Backhoe attacks are common in areas of heavy construction where a large piece of equipment (like a backhoe) is digging near buried data cables. One wrong move by the backhoe operator can sever thousands of telecommunications lines, potentially taking down many services.

Wireless DoS Attacks

At the application and transport layers, there is nothing fundamentally different between DoS attacks on wireless and wired networks. However, there are critical differences in the interaction between the network, data-link, and physical layers that increase the risk of a DoS attack on a wireless network.

802.11b physical attacks

A physical DoS attack against a wired network requires very close proximity to the victim host. This is not the case with a wireless network. The medium is everywhere and attackers can launch a physical attack from much farther distances. Instead of being inside of a building to perform a physical DoS attack against a LAN, an attacker can be outside of the building. Unlike a wired network where there is usually evidence of a physical attack (destroyed cabling, removed cable, attackers on video surveillance cameras), there are no visible signs that something has changed.

The 802.11 PHY specifications define a limited range of frequencies for communication. The 802.11 devices that use a specific PHY are constrained to these frequency ranges. An attacker can create a device that will saturate the 802.11 frequency bands with noise. If the attacker can create enough RF noise to reduce the signal-to-noise ratio to an unusable level, then the devices within range of the noise will be effectively taken offline. The devices will not be able to pick out the valid network signal from all of the random noise being generated and therefore will be unable to communicate.

Creating a device that produces a lot of noise at 2.4 GHz is relatively easy and inexpensive to construct. However, there are several common commercial devices available today that can easily take down a wireless network. Unfortunately, many 2.4 GHz cordless phones that can be purchased in electronics stores have the capability to take an 802.11b network offline. While not a refined electronic weapon, these phones can interfere or completely disable a WLAN. Cordless phones use several different modulation techniques and can overlap on the frequencies used by 802.11b. This overlapping is simply noise to an 802.11b radio. The cordless-phone-induced noise can drop the SNR enough to bring down any WLAN network nearby.

TIP: For Christmas one year, Bruce and his wife bought each other 2.4 GHz phones to replace their older 900 MHz models. After installing the phones, they noticed that they had many unexplained network outages. They also noticed an audible crackling noise on the phones. After reading the specs on the phone, they were able to set the phones to a different part of the ISM range than the frequencies they had chosen for their 802.11b network. This got rid of the interference and the outages. However, they learned the hard way that wireless technology is not necessarily plug-and-play.

There are also problems with a DoS from other networking protocols. In particular, Bluetooth uses the same ISM band as 802.11b and 802.11g. The DSSS modulation in 802.11b is susceptible to interference from the modulation used in Bluetooth networks. While there are potential solutions to prevent Bluetooth from stepping on 802.11b transmissions, large-scale Bluetooth deployments may still interfere to the point of inoperability with 802.11b networks. As time passes, the 2.4 GHz ISM band will become more crowded, making unintended DoS attacks against 802.11b networks commonplace. Sirius and XM satellite radio, who have spectrum bordering the ISM band, have complained that ISM-band devices may cause interference with their ground based repeaters and satellites.

802.11b data-link DoS attacks

At the data-link layer, ubiquitous access to the medium again creates new opportunities for DoS attacks. Even with WEP turned on, an attacker has access to the link layer information and can perform some DoS attacks. Without WEP, the attacker has full access to manipulate associations between stations and access points to terminate access to the network.

If an AP is incorrectly utilizing diversity antennas, an attacker can potentially deny access to clients associated to the AP. The use of diversity antennas is intended to compensate for multi-path fade. However, diversity antennas are sometimes used to cover more area with an AP by using antennas that cover disparate physical regions.

TIP: Antenna diversity is a mechanism where a single radio uses multiple antennas to overcome multi-path fade. A radio signal usually has many different paths to get to an antenna due to reflections of the signal off walls, trees, desks, etc. A radio using diversity antennas will sample a client transmission from all attached antennas and determine which antenna has the highest quality signal. The radio will then use that antenna to send and receive traffic destined for that station.

If the diversity antennas do not cover the same region of space, an attacker can deny service to associated stations by exploiting this improper setup, as shown in Figure 2-2. If diversity antennas A and B are attached to an AP, they are setup to cover both sides of the wall independently. Alice is on the left side of the wall, so the AP will choose antenna A for the sending and receiving frames. Bob is on the opposite side of the wall from Alice and will therefore send and receive frames with antenna B. Bob can take Alice off the network by changing his MAC address to be the same as Alice's. Then Bob can guarantee that his signal is stronger on antenna B than Alice's signal on antenna A by using a amplifier or other enhancement mechanism. Once Bob's signal has been detected as the stronger signal on antenna B, the AP will send and receive frames for the MAC address on antenna B. As long as Bob continues to send traffic to the AP, Alice's frames will be ignored.

Figure 2-2. Attack against improperly provisioned diversity antennas

If a client is not using WEP authentication (or an attacker has knowledge of the WEP key), then the client is vulnerable to DoS attacks from spoofed APs. Clients can generally be configured to associate with any access point or to associate to an access point in a particular ESSID. If a client is configured to associate to any available AP, it will select the AP with the strongest signal regardless of the ESSID. If the client is configured to associate to a particular ESSID, it will select the AP in the ESSID with the strongest signal strength.

Either way, a malicious AP can effectively black-hole traffic from a victim by spoofing the desired AP. For example, if a client is configured to associate to APs in the SSID shmoo, the client will look for all available APs in that SSID. It will then associate with the AP for which it has the strongest signal. A malicious AP with the SSID of shmoo can make sure it has the strongest signal by using a larger or directional antenna, signal amplifier, etc., as shown in Figure 2-3. The client will associate to the malicious AP, and the malicious AP can drop or monitor all traffic sent to it by the client.

Figure 2-3. Malicious AP overpowering valid AP

802.11b network DoS attacks

If a network allows any client to associate, it is vulnerable to a network-level DoS attack. Since an 802.11 network is a shared medium, a malicious user can flood the network with traffic, denying access to other devices associated to the affected access point. As an example, an attacker can associate to a victim 802.11b network and send an ICMP flood to the gateway. While the gateway may be able to withstand the amount of traffic, the shared bandwidth of the 802.11b infrastructure is easily saturated. Other clients associated to the same AP as the attacker will have a very difficult time sending packets.

Given the relatively slow speed of 802.11b networks, a network DoS may happen inadvertently due to large file transfers or bandwidth-intense applications. A few bandwidth-hungry applications on a WLAN can hamper access for all associated stations. With the deployment of higher-speed WLAN technologies, these unintentional attacks will become less frequent.

Wireless Risks

Many security professionals fall into the trap of dealing only with the theory and not the practice of defending a network. While it would be great to be protected from all potential attacks that a wireless network may come under, that level of protection may not be practical.

When securing your network, you must consider the risk associated with each attack and address it accordingly. The topic of risk assessment and risk management is one that could fill a book on its own. However, it is important that you understand the basics of risk assessment so you spend your time and money wisely addressing the real issues rather than waste resources on topics that present no risk.

Knowing Is Half the Battle

Now that you are familiar with the kinds of attacks that an attacker may commit, you know what you're protecting against. Once you've defined your risk in reference to these attacks, you need to know what tools are at your disposal to protect you and your users. The next step in setting up a secure wireless infrastructure is laying down a strong foundation in your wireless clients.
